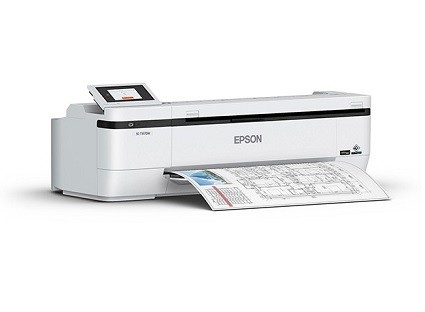

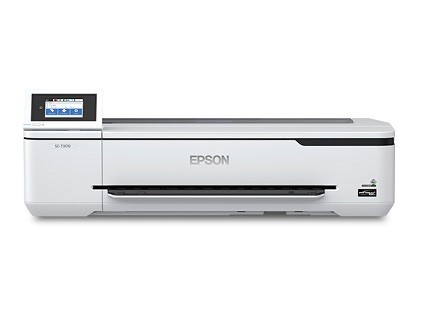

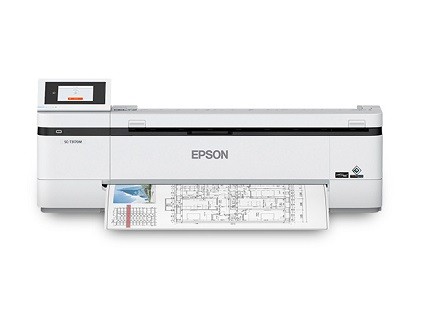

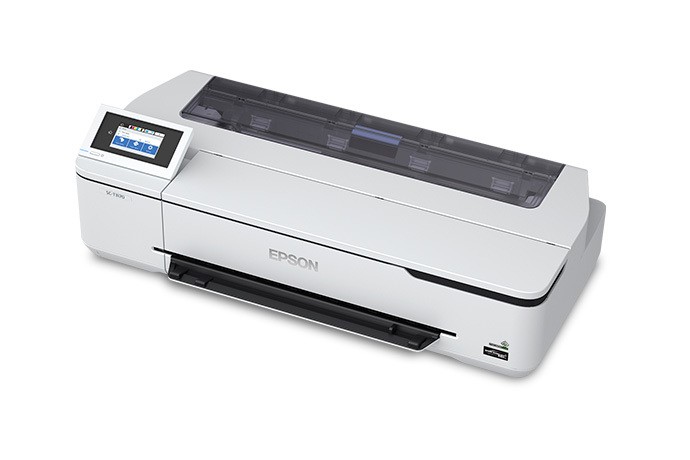

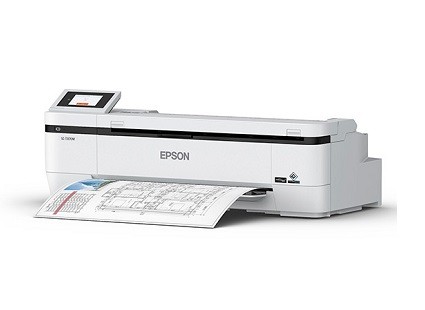

Epson SureColor T3170M 24″ Wireless MFP Printer with Integrated Scanner, printer/scanner/copier, SCT3170M

Key Features:

• High-Detail Integrated Scanner – Easily scan and share documents; up to 600 dpi scanner with highlight detection to accurately scan annotated blueprints and drawings
• Ultra-fast Print Speeds – The SureColor T3170M produces A1/D-size prints in as fast as 34 seconds³
• Durable, Instant-Dry Prints – Archival-quality, all-pigment-based UltraChrome XD2 inks deliver brilliant color, crisp lines, and smudge and water-resistant prints
• Versatile Print Media Handling – Accommodates rolls up to 24″ wide and sheets up to 11″ x 17″ through the auto-sheet feeder
• Print & Scan from Virtually Anywhere in Your Home or Office – Easily print from or scan to USB thumb drives,⁴ as well as print from tablets, smartphones,⁵ and more with integrated wireless plus router-free Wi-Fi Direct printing⁶
• Extreme Print Quality and Precision – PrecisionCore MicroTFP printhead with Precision Droplet Control for outstanding clarity; up to 2400 dpi printing resolution captures annotations, lines, and image detail with incredible accuracy
• Enterprise Security Features and Protocol Support – Supports secure PDF printing from PCs and scanning of secure PDFs to USB thumb drives and shared folders, no computer needed

Print:

---

Printing Technology: Precision Core Micro TFP 4-channel, drop-on-demand printhead

Maximum Print Resolution:2400 x 1200 dpi

Print Speed:A1/D-sized print: 34 seconds

Minimum Ink Droplet Size: Smallest Droplet Size: 4 picolitres ; Variable Droplet Technology can produce up to three different sizes per line

Nozzle Configuration:

• Black: 800 nozzles (800 nozzles x 1 channels)
• Color: 2400 nozzles (800 nozzles x 3 channels)

Ink:

---

Ink Type: UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

General:

---

Operating Systems:

• Mac^® OS X^® (10.6.8 or later)⁹
• Windows^® 10, 8.1, 7 (32-bit, 64-bit)⁹

Temperature: Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity:

• Operating: 20–80% (no condensation)
• Operating (Recommended): 45–60% (no condensation)
• Storage: 5–85% (no condensation)

Operating Temperature:

• Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
• Operating (Recommended): 59 ˚ to 77 ˚F (15 ˚ to 25˚C)

Dimensions:

• Without Stand: 38.1″ x 11.5″ x 19.9″
• With Stand 38.1″ x 19.5″ x 46.9

Weight:

• Without Stand: 75 lbs (34 kg)
• With Stand: 102.3 lb (46.5 kg)

Security:IEEE802.1x, SNMP 3, TLS/SSL, SMTPs, POPs, FTPs, IPsec, Administrator Mode, WPA3

Safety Approvals: USA and Canada (NRTL Certified, CSA/UL 62368-1)

Country of Origin:Indonesia

Warranty: Standard 1-year, Customer Care telephone support Monday through Friday and/or whole unit exchange

General:

• Maximum Copies: Up to 99
• Reduction/Enlargement: 25% to 400%
• Auto Sheet Feeder: Up to 11″ x 17″
• Sheet Feeder Capacity: 50 pages
• Memory: 1GB (Printer) + 8GB (Scanner)
• Acoustic Noise Level
  • Operating: Approx. 47 dB(A)
  • Sleep: Approx. 32 dB(A)
• Media Type: Plain Paper, Recycled Paper, Coated Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Carrier Sheet
• Supported File Formats: JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF

Ink Supply System:

---

In-box Ink Fill Volume:

• Colors (C,M,Y) 26 mL
• Black (K) 50 mL

Retail Ink Fill Volume:

• Colors (C,M,Y): 26 or 50 mL
• Black (K): 50 or 80 mL

Ink Shelf Life:

• 2 years from printed production date or 6 months after opened
• Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.

Printable Area and Accuracy:

---

Maximum Paper Width:24″

Minimum Cut-sheet Size:8.27 x 11″ (1 sheet and ASF)

Minimum Paper Width:

• Roll: 13″
• Sheet: 8.26″

Line Accuracy:±0.1% or ±0.26 mm

Maximum Printable Length: Up to 59′

Specifications Scanner:

---

Sensor: CIS Sensor (Sheet fed)

Maximum Resolution: Up to 600 dpi, reprint 2400 x 2100 dpi

Color and Grayscale Scan Mode (Bit Depth):Scan to Network Folder, FTP Server, Secure FTP Server, Mail Server, Secure Mail Server, USB Memory Stick

Maximum Scan Area:

• Width: Up to 24″
• Length: Up to 8.9′

Scanning Speed:

• Up to 1.5 ips (Color)
• Up to 4.5 ips (Monochrome)

Sheet Media Handling:

---

Thickness:10.2 mil

Single Sheet, Top – loading :Up to 24″ wide

Left/Right Margins :Minimum 3 mm each

Roll Media Handling:

---

Single Roll-to-Roll / Top-loading Roll:24″ wide

Media Core:2″ Core Diameter: User-adjustable roll media adapters

Maximum Roll Diameter: Up to 4.6″

Maximum Roll Weight:6.6 lb.

Media Thickness: Up to 8.6 mil

Roll Cutting: High-speed internal rotary cutter; auto or manual

Roll Paper Remaining: The amount of remaining paper can be controlled from the control panel

Printer Details:

---

Display:4.3″ Touchscreen

Printer Language:

• ESC/P raster
• HP-GL/2, HP RTL *1

Interfaces: SuperSpeed USB*1, Wired Ethernet 100BASE-TX /1000BASE-T, Wireless LAN IEEE802.11 b/g/n, USB memory stick, Wi-Fi Direct

Power:

---

Power Consumption:

• Printing: Approx. 24 W
• Ready: Approx. 11 W
• Sleep: Approx. 2 W
• Power Off (Stand By): 0.2 W

Power Requirements:

• Voltage: AC 110–240 V
• Frequency: 50–60 Hz
• Current: 1.4 A

Weight	105 lbs
Dimensions	40 × 20 × 13 in
